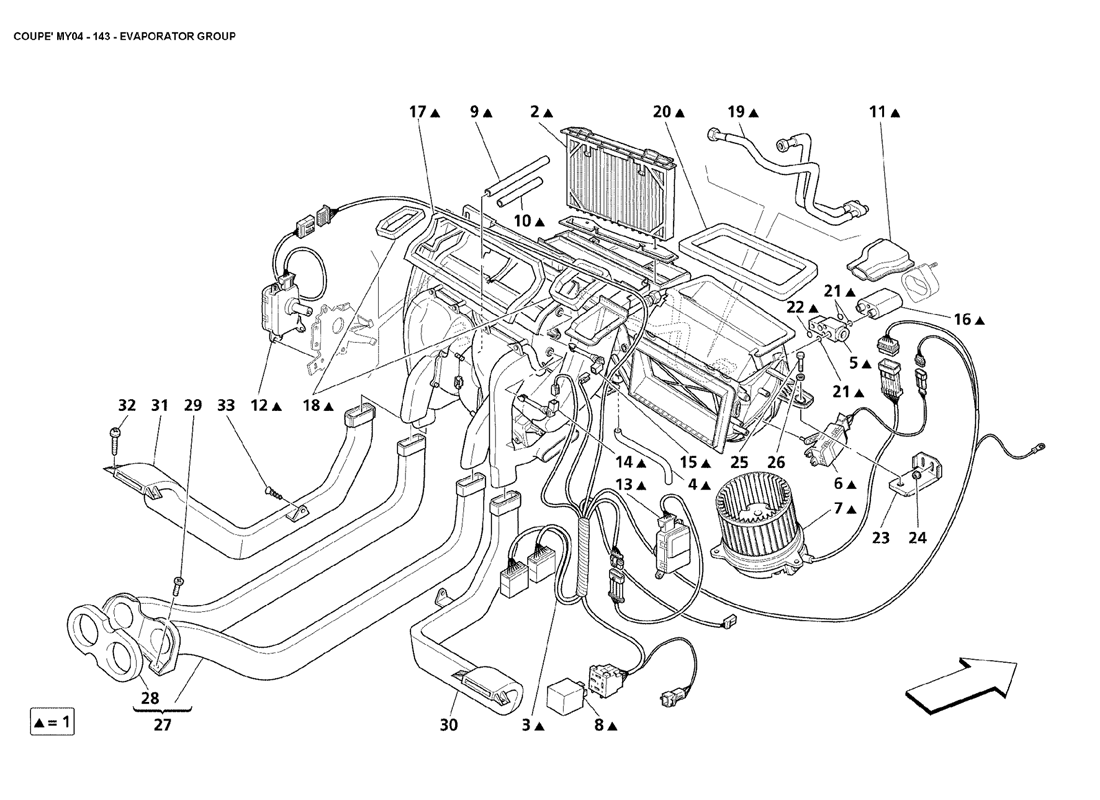

143 Evaporator Group

Klik op het plaatje voor een grotere versie

Artikel	Prijs (ex.BTW)
001 Anti-pollen Filter	€68,80
001 Complete Evaporator Set	€1.350,71
001 Complete Evaporator Set	€1.569,72
001 Lh Side Air Duct	€48,28
001 Upper Treated Air Sensor	€10,94
002 Nut	€0,20
002 Rh Side Air Duct	€48,28
003 Electric Fan	€190,94
003 Relay Complete Cable	€528,11
003 Relay Complete Cable	€528,11
004 Lower Treated Air Sensor	€10,94
005 Gasket For Rear Nozzle	€0,91
005 Re-cycling Flap Actuator	€50,32
005 Washer	€0,13
006 Block Expansion Valve	€198,00
006 Condensate Drain Pipe	€1,64
006 Screw	€1,17
008 Relay	€26,42
008 Water Outlet Sleeve	€12,67
009 Water Inlet Duct	€15,00
009 Water Inlet Sleeve	€12,67
010 Expansion Valve Protection	€3,45
010 Screw	€0,40
010 Water Outlet Duct	€16,00
011 Distribution Air Flap Actuator	€61,28
012 Distribution Flap Actuator	€54,51
015 Screw	€0,06
016 Flange For Valvle	€23,19
016 Screw	€0,17
017 Gasket	€0,85
018 Gasket	€1,75
019 Freon Pipes	€62,74
019 Freon Pipes	€87,14
020 Upper Gasket For Adaptator	€1,75
023 Bracket	€3,76
027 Complete Central Air Ducting	€120,12
064 Grommet	€2,84
065 Grommet	€1,65
